JP-850-110 Sheet Extruding Machiner

Short Description:

JP series plastic sheet extruding machines are the machines our company has developed with modern technology. The machine includes extruder,three rollers,winder and electric control cabinet. The screws and hopper are made of alloy steel with nitrogen treatment,guarantee the strength and transmission filter uses”hanger”design to ensure sheets’ smooth. The three roller with calendaring adjust linear velocity. Good plasticization maintains the eveness of plastic sheets. Even flow maintains smooth and fine finish of plastic sheets.

Send email to us

Product Detail

Product Tags

FUNCTION AND FEATURE

It is suitable for PP, PS, PE, HIPS sheet forthe manufacturing of high quality drinking cups, jelly cups, food boxes and other plastic containers by thermforming precess and vacuum foming precess methods.

PRODUCT FEATURES

1) Plastic sheet making machine has High capacity.
2) Energy saving: About 20% energy saving than normal machines.
3) Four self-designed major core technology of sheet extruder: extrusion system, die, roller, rewinder that are all studied and designed by ourselves. For some main electrical parts,we adopts double protection.
4) The machine design is more humanized, and even for a newer,it’s more easy to operate..
5) The plasticizing effect of the sheet is very good. After the sheet formed and walking in curved line, it can make sure the stability of the sheet stock.
6) The heating system is controlled by high-grade china heater, stainless heater, inner-storing type single heating pipe and precision temperature-controlling die mould, is exact in controlling temperature, quickly in heating, good in keeping temperature, long life and save time and energy.
7) We have a profession team in engaged in machine researching and development. Meanwhile,our aftersales team have rich experience. Most of the employee have more than 10 years experience in this area.

PARAMETERS

Model No.

Applicable raw material

Sheet thickness

(mm)

Gear box

Screw spec.

(mm)

Roller spec

(mm)

Sheet width

(mm)

Max. Output

(kg/h)

Max. Rolling sheet dia.

(mm)

Tower power

(kw)

Motor

(kw)

Dimension

(m)

JP-850-110

PP, PE, PS, HIPS

0.3-2.0

280

Φ110×33

Φ400×850

≤750

250

800

160

75, 3.7, 2.2

10*1.65*2.26

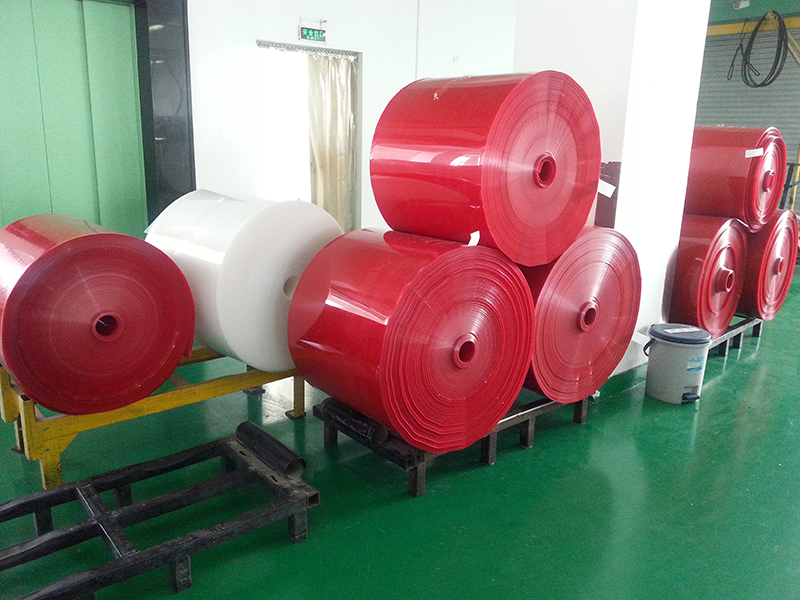

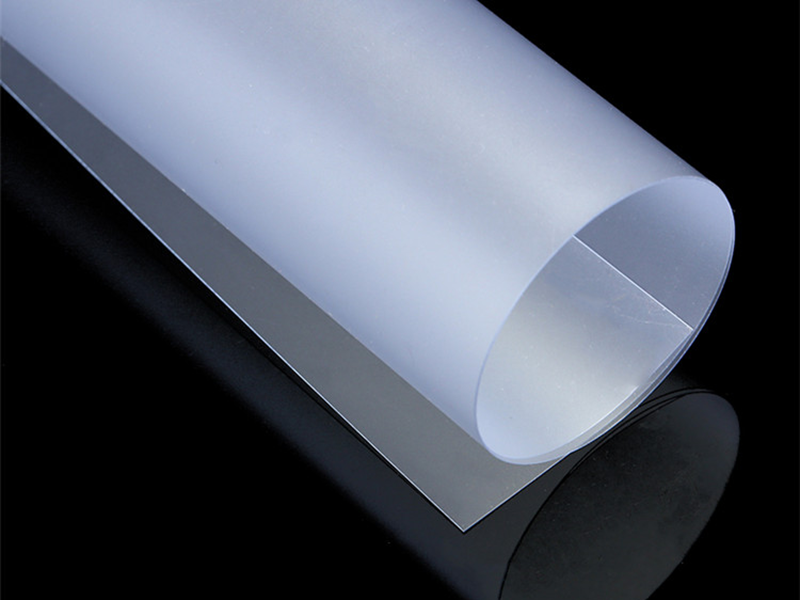

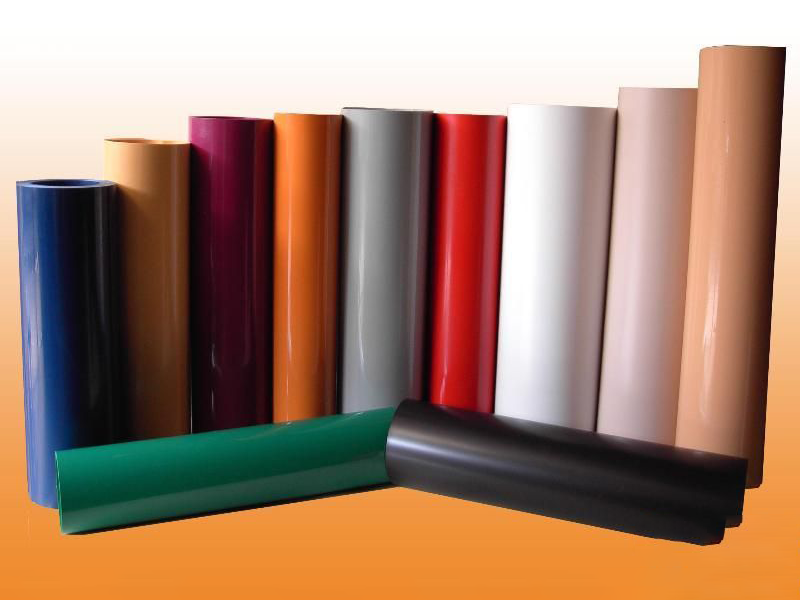

PRODUCTS SAMPLES

Production Process

Cooperation Brands

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 20 countries since 2001.

Q2: What kind of material this machine can produce?
A2: The machine can produce the PP, PS, PE, HIPS sheet with different components.

Q3: Do you accept the OEM design?
A3: Yes,we can customized according to different customer’s request.

Q4: How long is the warranty period?
A4: The machine have one year guarantee time and electricl parts for 6 months.

Q5: How to install the machine?
A5: We will send technician to your factory for one week free installment the machine, and training your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals etc.

Q6: If we are totally new in this area and worry can not find the profession engineer in the local market?
A6: We can help to find the profession engineer from our domestic market. You can hire him for a short time until you have person that can run the machine well. And you just make a deal with the engineer directly.

Q7: Is there other value-add service?
A7: We can offer you some professional suggestions about the production experience,for example: we can offer some formula upon some expecial product like high clear PP cup etc.
