RGC-730A Plastic Thermoforming Machine

Short Description:

RGC-730A fully automatic hydraulic cup thermoforming machine is high speed, high productivity. sheet feeding-sheet heat treatment-streching forming-cutting edge, a single fully automatic complete production line.


Product Detail

Product Tags

Advantage

1. The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.
2. Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.
3. Completely automatic and fast production speed. By installing different molds to produce different products.
4. Adopt imported famous brands of electric and pneumatic fittings, stable running, reliable quality and long life.
5. The whole machine is compact, one mould has all functions, such as pressing giving, forming, cutting, cooling and finished product blowing. Short process, high quality of finished products and meet the national sanitary standard.
6. The machine is fit for producing PP, PE, PET, HIPS, degradable material for different shape and size of dissposalbe cup, jelly cup, ice cream cup, one-off cup,  milk cup,bowl, instant noodle bowl, fast food box, container and so on.
7.This machine is designed for making the thin and heigh product with a good performance.

PARAMETERS

Model No. Sheet thickness
(mm)
Sheet width
(mm)
Max. forming area
(mm)
Max.forming depth
(mm)
Work speed
(shot/min)
Heat rated power
(KW)
Motor power Total weight
(Ton)
Dimension
(m)
RGC-730A 0.25-2.5 600-730 420*720 230 ≤35 150 15 6.5 4.7*1.6*3.1

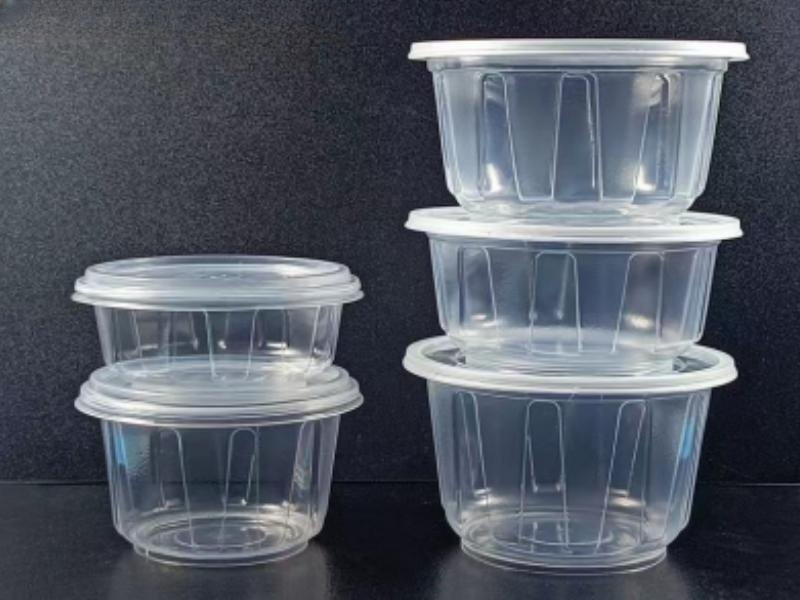

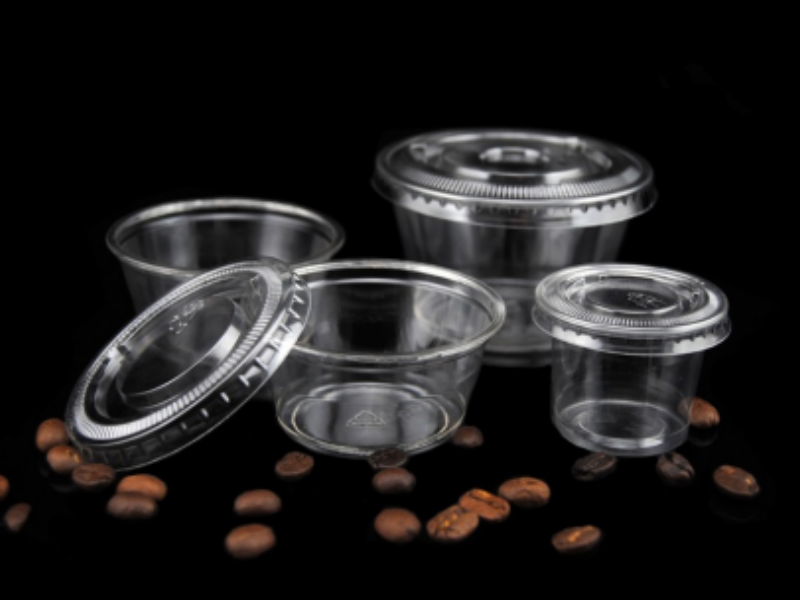

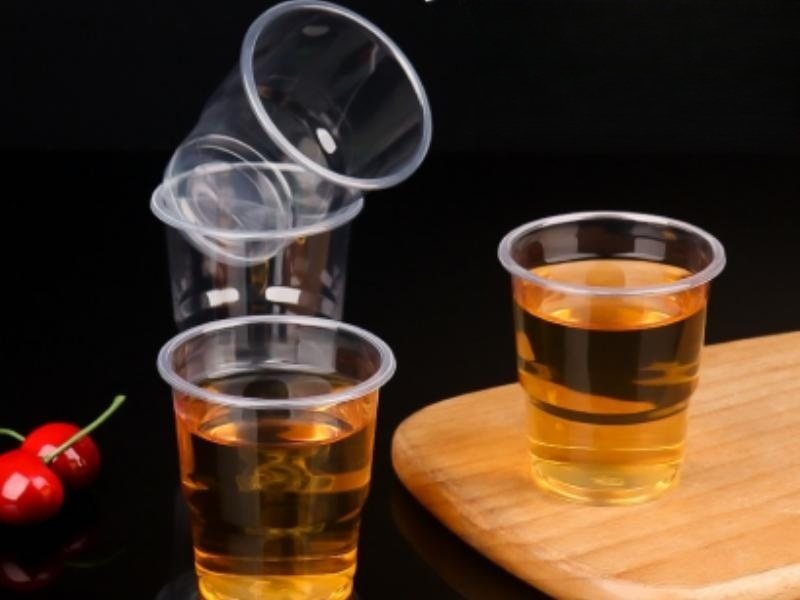

PRODUCTS SAMPLES

1
2
3
4
RGC-730-4
6

Production Process

6

Cooperation Brands

partner_03

FAQ

Q1: Are you a factory or trading company?
A1: Since 2001, our factory has successfully exported our machines to more than 20 countries.

Q2: How long is the warranty period?
A2:The machine comes with a one-year warranty on all parts, and a six-month warranty on electrical components in particular.

Q3: How to install the machine?
A3: Our company will arrange a technician to visit your factory and provide a week of free machine installation. Besides, our technicians will also train your workers how to operate it properly. Please note, however, that you will be responsible for paying all associated costs such as visa fees, round-trip airfare, hotel accommodation and meals.

Q4:If we are totally new in this area and worry can not find the profession engineer in the local market?
A4: We are able to help you source skilled engineers from the local market to temporarily support your operation until you have qualified team members who can operate the machine with confidence. You will have the opportunity to consult and make arrangements directly with engineers.

Q5: Is there other value-add service?
A5: We have the ability to provide you with professional advice and insights based on our production experience. For example, we can provide specific formulations for specialty products such as high clarity PP cups.
