SVO-858L Series Servo Thermoforming Machine

Short Description:

SV0 series servo thermoloring machine is high speed, high productivity, lower noise advantage. lt’s sheet feeding-sheet heattreatment-streching forming-cuting edge, a single fully automatic complete production line. lt is suitable to use biodegradablematerial PP,PE,PS, PET, ABS and other plastic sheet to produce drinking cups,juice cups, bowl,tray & food storage boxes and soan. The machine forming area use five fulcrums,twisted shaft and reducer structure which controlled by servo system to makesure machine stable working with low noise.


Product Detail

Product Tags

FUNCTION AND FEATURE

A full servo thermoforming machine is a machine used in the thermoforming process to manufacture plastic products. Thermoforming is a manufacturing process in which a sheet of plastic is heated, stretched over a mold, and then cooled to form the desired shape. A full servo thermoforming machine is called "full servo" because it is equipped with servo motors to control every aspect of the machine's operation, including heating, stretching and trimming. Servo motors provide precise control for precise and repeatable shaping of plastic sheets. Typically used in high-speed production applications, these machines can handle a wide variety of plastic materials including PP, PS, PET,HIPS and more. Some of the advantages of a full servo thermoforming machine include increased efficiency, reduced waste, improved product quality, and the flexibility to produce different shapes and sizes. Additionally, the machine's servo-driven motion can be easily programmed and adjusted, making it versatile and customizable to meet a variety of production requirements. Overall, fully servo thermoforming machines are technologically advanced and efficient solutions for the manufacture of plastic products.

PRODUCT FEATURES

1. Servo driving system or hydraulic system offer more smoothly running, easy be operated and maintained.
2. Four column structure guarantee high precision plane accuracy of the running mould sets.
3. Servo motor drive sheet sending and plug assist device, offer high precision running: easy be controlled.
4. China or Germany heater , high heating efficiency, lower power, long life span.
5. PLC with touch screen control system, easy be operated.

PARAMETERS

Model No. Sheet thickness
(mm)
Sheet width
(mm)
Mold forming area
(mm)
Max forming depth
(mm)
Max No-load speed
(cycle/min)
Total power
(kW)
Motor power
(kW)
Power supply Machine total weight
(T)
Dimension
(m)
Servo stretching
(kW)
SVO-858L 0.3-2.5 730-850 850X580 200 ≤35 206 20 380V/50HZ 8.5 5.7X1.9X3.4 11/15

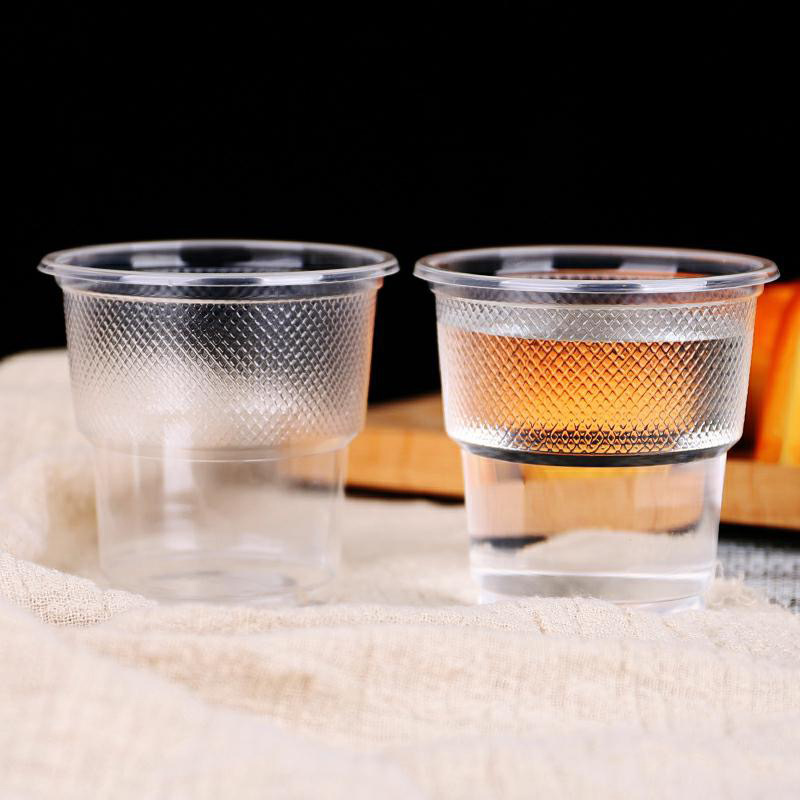

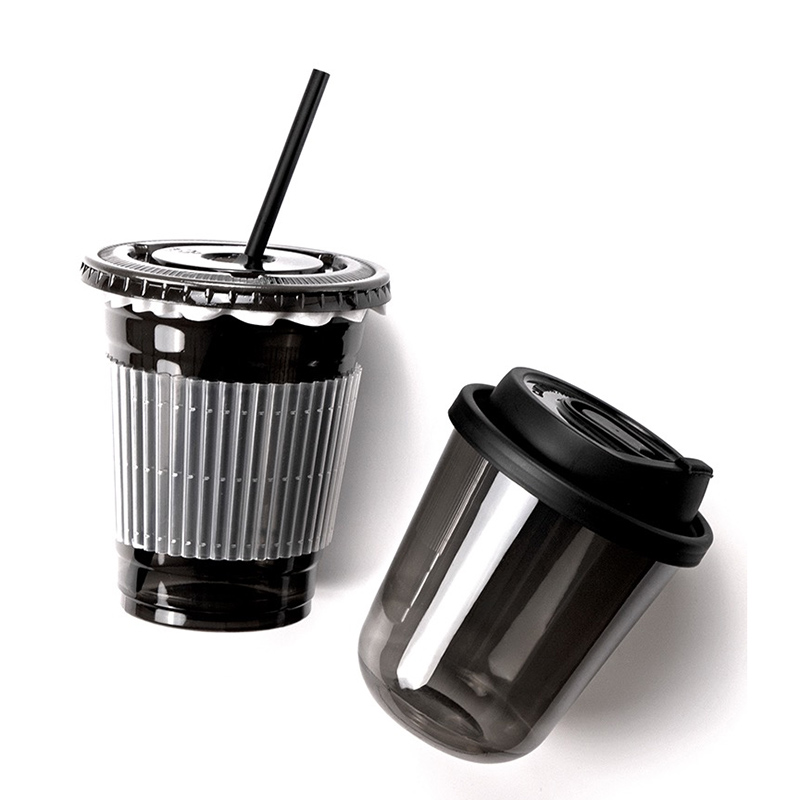

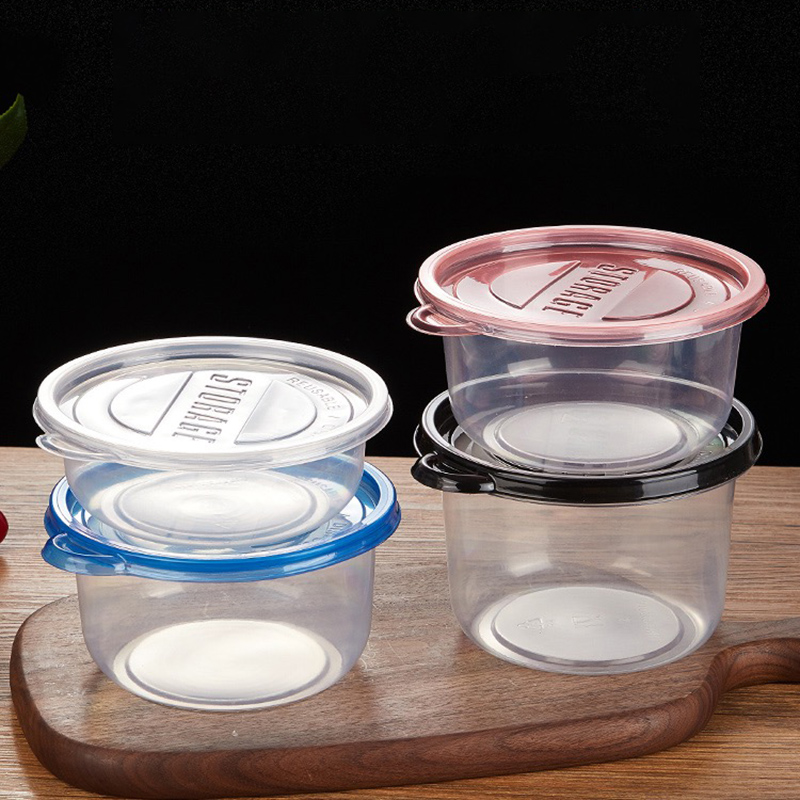

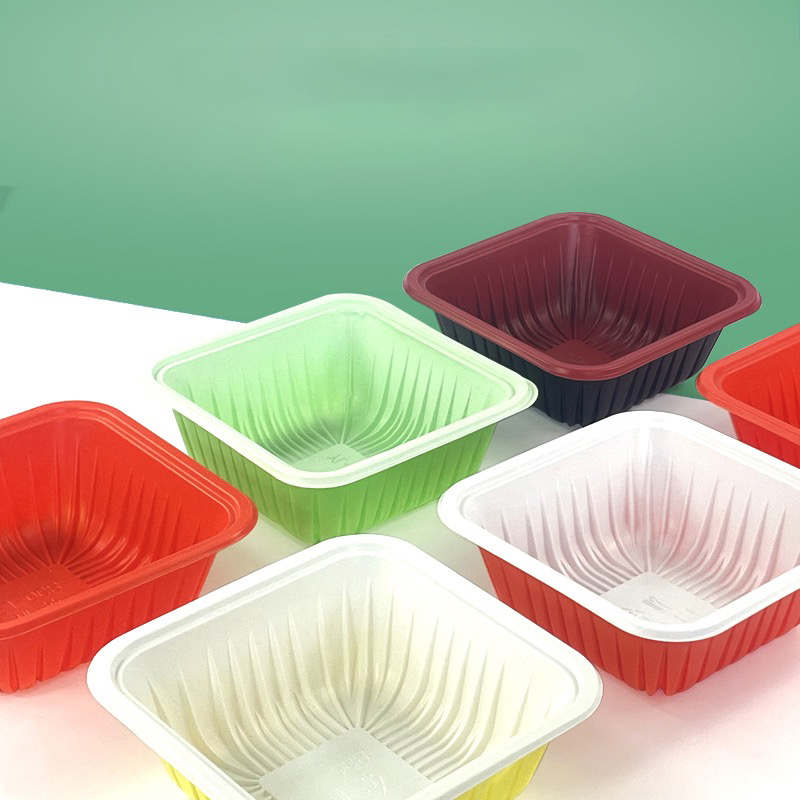

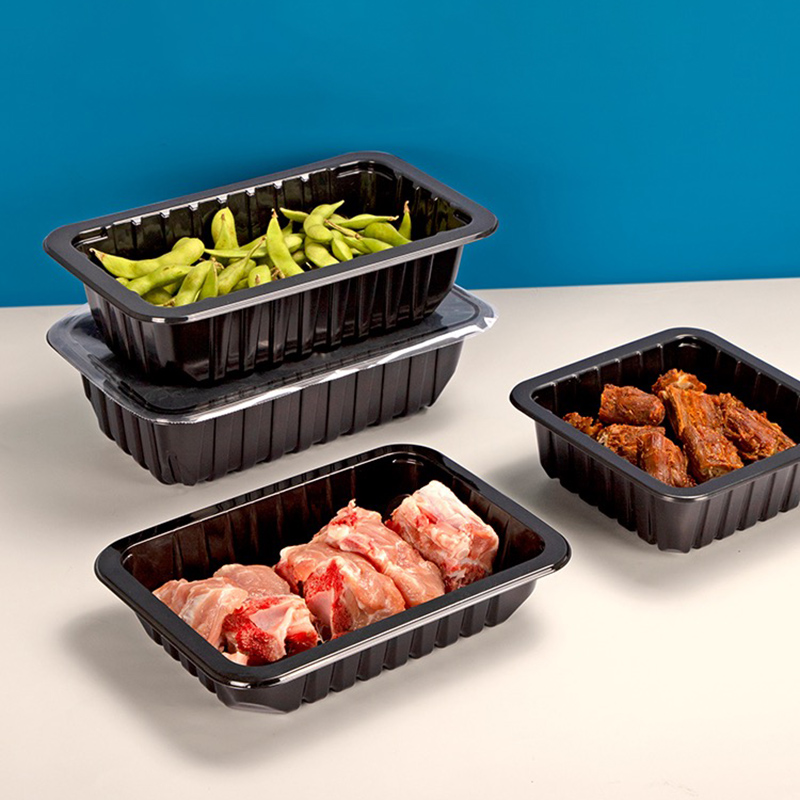

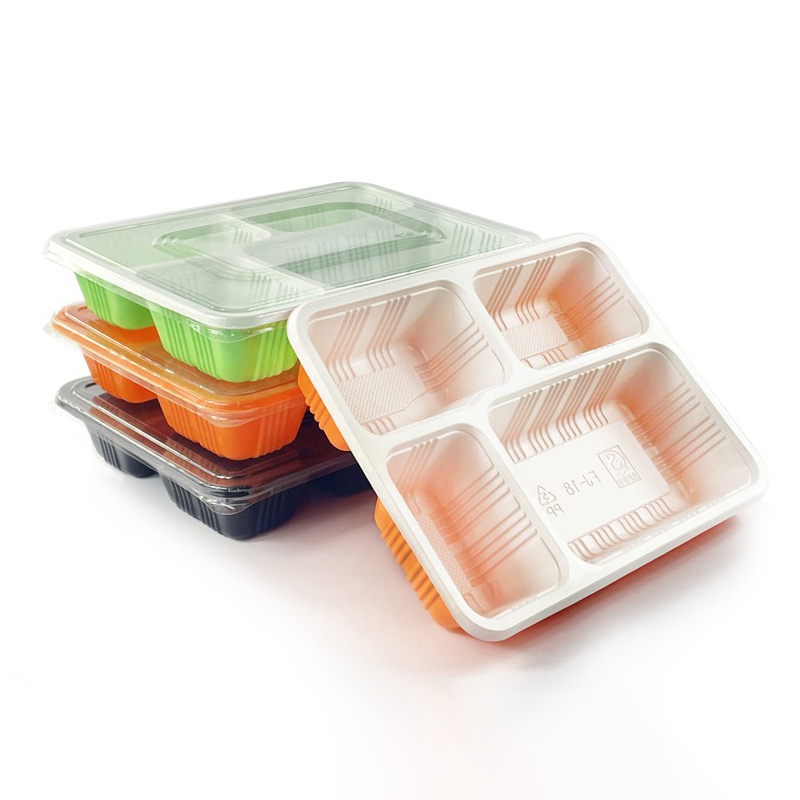

PRODUCTS SAMPLES


Production Process

6

Cooperation Brands

partner_03

FAQ

Q1: Are you a factory or trading company?
A1: We are a factory, and we export our machines to more than 20 countries since 2001.

Q2: How long is the warranty period?
A2: The machine have one year guarantee time and electricl parts for 6 months.

Q3: Which country have your machine sold before?
A3: We had sold the machine to these countries: Thailand, Phillipines, Vietnam, Malaysia, Indonesia, Cambodia, Myamar, Korea, Russia, Iran, Saudi, Arabic, Bangladesh, Venezuela, Mauritius, India, Kenya, Libia, Bolivia, USA, Costa Rica and so on.

Q4: How to install the machine?
A4: We will send technician to your factory for one week free installment the machine, and training your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals etc.

Q5: If we are totally new in this area and worry can not find the profession engineer in the local market?
A5: We can help to find the profession engineer from our domestic market. You can hire him for a short time until you have person that can run the machine well. And you just make a deal with the engineer directly.

Q6: Is there other value-add service?
A6: We can offer you some professional suggestions about the production experience, for example: we can offer some formula upon some expecial product like high clear PP cup etc.
